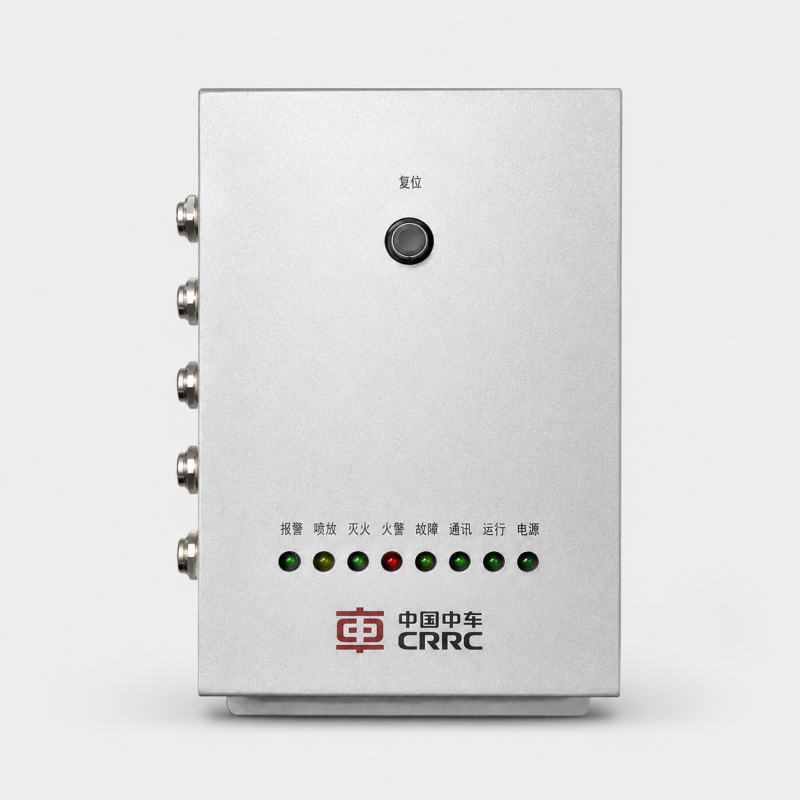

Locomotive Fire Monitoring, Early Warning and Fire Extinguishing Controller
Product Highlights
Integrated Fire Monitoring and Extinguishing Control
Designed for locomotive fire protection systems, integrating fire monitoring, early warning, control output and extinguishing status feedback in one unit.
4-Channel Infrared Camera Data Access
Supports data reading from 4 channels of infrared cameras, enabling visual fire monitoring and abnormal temperature detection support.
32GB Onboard eMMC Storage
Built-in 32GB eMMC storage supports local video data storage, making alarm review and event tracing more convenient.
Built-in 5-Port Switch
Integrated 5-port switch simplifies system networking and supports connection with multiple front-end monitoring devices.
CAN Bus Detector Communication
Communicates with fire detectors through CAN bus, improving communication reliability and anti-interference performance in locomotive environments.
Independent Power and Signal Cable Design
Adopts a separated power cable and signal cable design, improving system stability and reducing interference risks.
- TIENUO
- CHINA
- 3-7 Days
- 30PCS/MONTH
- Information
Product Functions & Advantages
Real-Time Locomotive Fire Monitoring
The controller can work with infrared cameras and fire detectors to monitor key locomotive areas, helping detect fire hazards and abnormal conditions in time.Fire Alarm and Early Warning Management
Supports fire alarm status monitoring and warning indication, helping operators respond quickly before the risk expands.Fire Extinguishing Control Output
Supports solenoid valve control output, enabling linkage with the fire extinguishing device for automatic or system-controlled extinguishing actions.Extinguishing Feedback Detection
Supports extinguishing discharge feedback input, allowing the system to confirm whether the fire extinguishing action has been triggered successfully.Cylinder Pressure Monitoring
Supports pressure transmitter input to monitor fire extinguishing bottle pressure and spraying pressure changes, reducing manual inspection workload.Relay Linkage Output
Provides dual normally open relay outputs, making it easier to connect with alarm devices, onboard control systems or third-party monitoring platforms.High Reliability for Railway Vehicle Use
The controller adopts dedicated control chip design, CAN bus communication and separated wiring architecture, making it suitable for vibration, electromagnetic interference and long-term onboard operation.Lower Maintenance Cost
By monitoring fire status, extinguisher bottle pressure, spray feedback and system operation status, the product helps reduce manual inspection frequency and improve maintenance efficiency.
Product Technical Parameters
| Item | Specification |
|---|---|
| Product Name | Fire Extinguishing Controller |
| Product Series | Locomotive Fire Monitoring, Early Warning and Fire Extinguishing Device Series |
| Product Type | Onboard fire monitoring and extinguishing control unit |
| Main Controller | Dedicated control chip |
| Built-in Storage | 32GB onboard eMMC |
| Network Module | Built-in 5-port switch |
| Infrared Camera Access | Supports 4-channel infrared camera data reading |
| Video Storage | Supports video storage function |
| Detector Communication | CAN bus communication |
| Wiring Design | Separate power cable and signal cable design |
| Fire Extinguishing Feedback | Supports extinguishing discharge feedback input |
| Pressure Monitoring | Supports pressure transmitter input |
| Control Output | Supports solenoid valve control output |
| Relay Output | Dual normally open relay outputs |
| Monitoring Capability | Fire alarm status, extinguishing status, bottle pressure and spraying state monitoring |
| Status Indicators | Alarm, discharge, extinguishing, fire alarm, fault, communication, running, power |
| Reset Function | Front-panel reset button |
| Application Scenario | Locomotive fire monitoring, onboard fire early warning, fire extinguishing linkage control |
| System Advantage | Integrated monitoring, alarm, storage, communication and extinguishing control |
