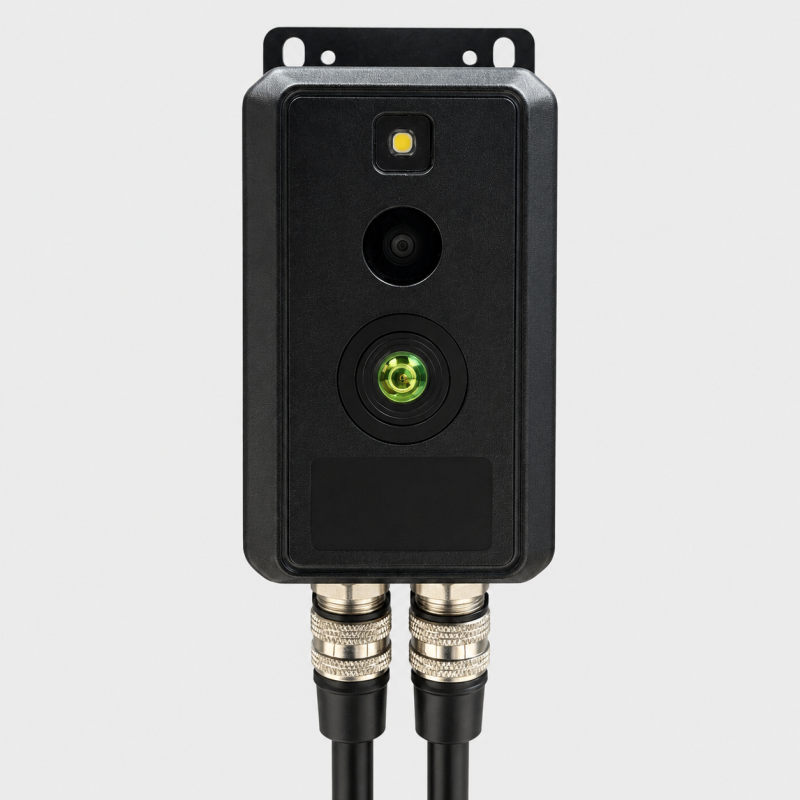

Railway Infrared Thermal Imaging Camera with Visible Light, DC24V, Ethernet Interface and 0–500°C Temperature Monitoring

Visible Light + Infrared Thermal Imaging
Integrated visible light and infrared thermal imaging for both daily visual monitoring and temperature abnormality detection.
24/7 Continuous Monitoring
Supports all-day monitoring without blind spots, suitable for railway onboard safety inspection and equipment temperature supervision.
Temperature Abnormality Detection
Infrared thermal imaging helps identify abnormal heat sources, overheating components and potential safety risks in time.
Stable Operation in High Electromagnetic Environments
Adopts military-grade electromagnetic shielding technology, enabling stable operation in environments such as traction substations and converter stations.
Clear and Reliable Image Output
Designed to prevent image shaking and data loss under strong electromagnetic interference.
Low Power Consumption
Rated power is less than 5W, making it suitable for long-term onboard operation.

Brand: TIENUO
Product origin: CHINA
Delivery time: 3-7 Days
Supply capacity: 30PCS/MONTH

Information

Product Functions & Advantages

Dual-Spectrum Monitoring
The visible light camera provides clear visual images for routine observation, while the infrared thermal imaging module focuses on temperature monitoring and abnormal heat detection.
Railway Safety Inspection
Suitable for train-mounted monitoring, railway equipment inspection, power equipment supervision and high-temperature risk identification.
Real-Time Temperature Measurement
Supports a temperature measurement range of 0–500°C, helping operators detect overheating and potential fire risks at an early stage.
High Reliability for Railway Applications
Built for complex railway operating environments, especially areas with strong electromagnetic interference.
Stable Data Transmission
Equipped with an Ethernet communication interface for stable data connection and easy integration with railway monitoring platforms.
Wide Temperature Adaptability
Supports operation from -40°C to 70°C, suitable for harsh outdoor and onboard environments.
Compact Industrial Design
Small, rugged and easy to install, with bottom cable connectors for reliable onboard wiring.

Technical Parameters

Item	Specification
Product Name	Infrared Thermal Imaging Camera
Rated Voltage	DC24V
Rated Power	< 5W
Communication Interface	Ethernet
Thermal Imaging Resolution	≥ 256 × 192
Visible Light Resolution	≥ 1080P
Temperature Measurement Range	0–500°C
Operating Temperature	-40°C to 70°C
Imaging Type	Visible Light + Infrared Thermal Imaging
Application Scenario	Railway onboard monitoring, equipment temperature monitoring, safety inspection
Anti-Interference Design	Military-grade electromagnetic shielding
Monitoring Capability	24-hour continuous monitoring
