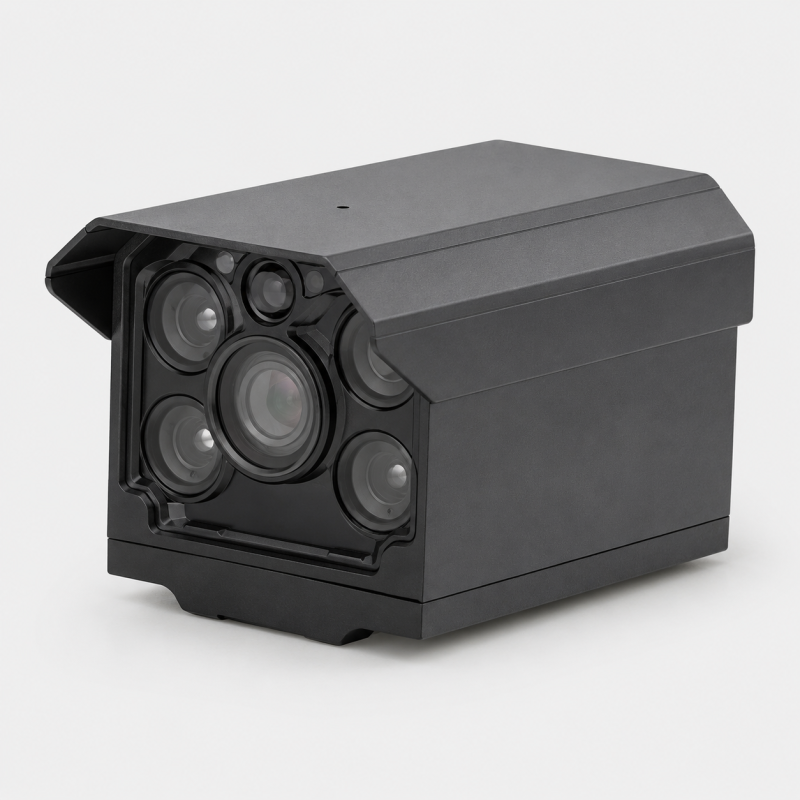

AI-Powered 4MP QHD Locomotive Road-Condition Intelligent Camera with IP68 Protection, M12 Ethernet and 6-Axis Gyro Stabilization

4MP QHD Ultra-Clear Imaging
Captures front-end track, road-condition and surrounding environment details with high-definition image quality.
Built-in AI Computing Power
Supports intelligent analysis for foreign-object intrusion detection, abnormal condition recognition and early warning.
Excellent Low-Light Performance
Minimum illumination reaches 0.005 Lux @ F1.2, and supports 0 Lux with IR, ensuring reliable monitoring in dark environments.
Stable Image Output
Equipped with professional image processing technologies including EIS, HDR, strong backlight suppression and 3D digital noise reduction.
Rugged Railway-Grade Design
IP68-rated protection, wide temperature operation and anti-vibration stability make it suitable for harsh locomotive environments.
Flexible Power Supply
Supports DC 9–36V and PoE 802.3af, making installation easier for railway and vehicle-mounted applications.

Brand: TIENUO
Product origin: CHINA
Delivery time: 3-7 Days
Supply capacity: 30PCS/MONTH

Information

Product Functions & Advantages

Intelligent Road-Condition Monitoring
Designed for locomotive front-end road-condition observation, helping operators monitor track conditions, obstacles and abnormal situations in real time.

AI Foreign-Object Intrusion Detection
Built-in AI computing capability enables intelligent detection and early warning, improving operational safety and reducing manual monitoring pressure.
High-Definition Video Capture
Supports up to 2560 × 1440 resolution, delivering clear images for railway security, driving assistance and post-event review.
Adaptable Lens Options
Available with 2.8mm, 4mm, 6mm and 12mm lenses, allowing flexible configuration for different installation distances and monitoring angles.
Reliable in Harsh Environments
With IP68 protection, wide temperature tolerance from -40°C to 85°C, and humidity resistance below 95% RH non-condensing, the camera is built for outdoor and onboard railway use.
Stable Video in Vibration Conditions
Built-in 6-axis gyro and electronic image stabilization help maintain clearer images during locomotive vibration and movement.
Efficient Video Compression
Supports H.265/H.264, reducing storage and bandwidth usage while maintaining video quality.
Multiple Network Protocols
Compatible with ONVIF, RTSP, TCP/IP, HTTP, FTP, RTP, RTCP, QoS, IPv6, UDP and GB28181, making integration easier with railway video management platforms.
Local Storage Support
Built-in 64GB storage supports local video data storage for system reliability and backup.

Technical Parameters

Item	Specification
Sensor	IMX347, 1/1.8"
AI Computing Power	Supports up to 2 TOPS INT8
Resolution	Up to 2560 × 1440
Lens Options	2.8mm / 4mm / 6mm / 12mm
Minimum Illumination	0.005 Lux @ F1.2, AGC ON; 0 Lux with IR
Ethernet Interface	M12
Digital Noise Reduction	3D DNR
Protection / Stabilization	Electronic image stabilization, built-in 6-axis gyro
Video Compression Standard	H.265 / H.264
Video Compression Bitrate	512 Kbps – 16384 Kbps
Supported Protocols	TCP/IP, HTTP, FTP, RTP, RTSP, RTCP, ONVIF, QoS, IPv6, UDP, GB28181
Operating Temperature / Humidity	-40°C to 85°C; humidity <95% RH, non-condensing
Protection Rating	IP68
Power Supply	DC 9–36V / PoE 802.3af
Audio Input	Internal MIC board + external pickup
Built-in Storage	64GB
Dimensions	99.1 × 61.2 × 62.2 mm
