Top 5 Pantograph CCTV System Brands in Asia-Pacific (APAC)

The AI Powerhouse of the High-Speed Network

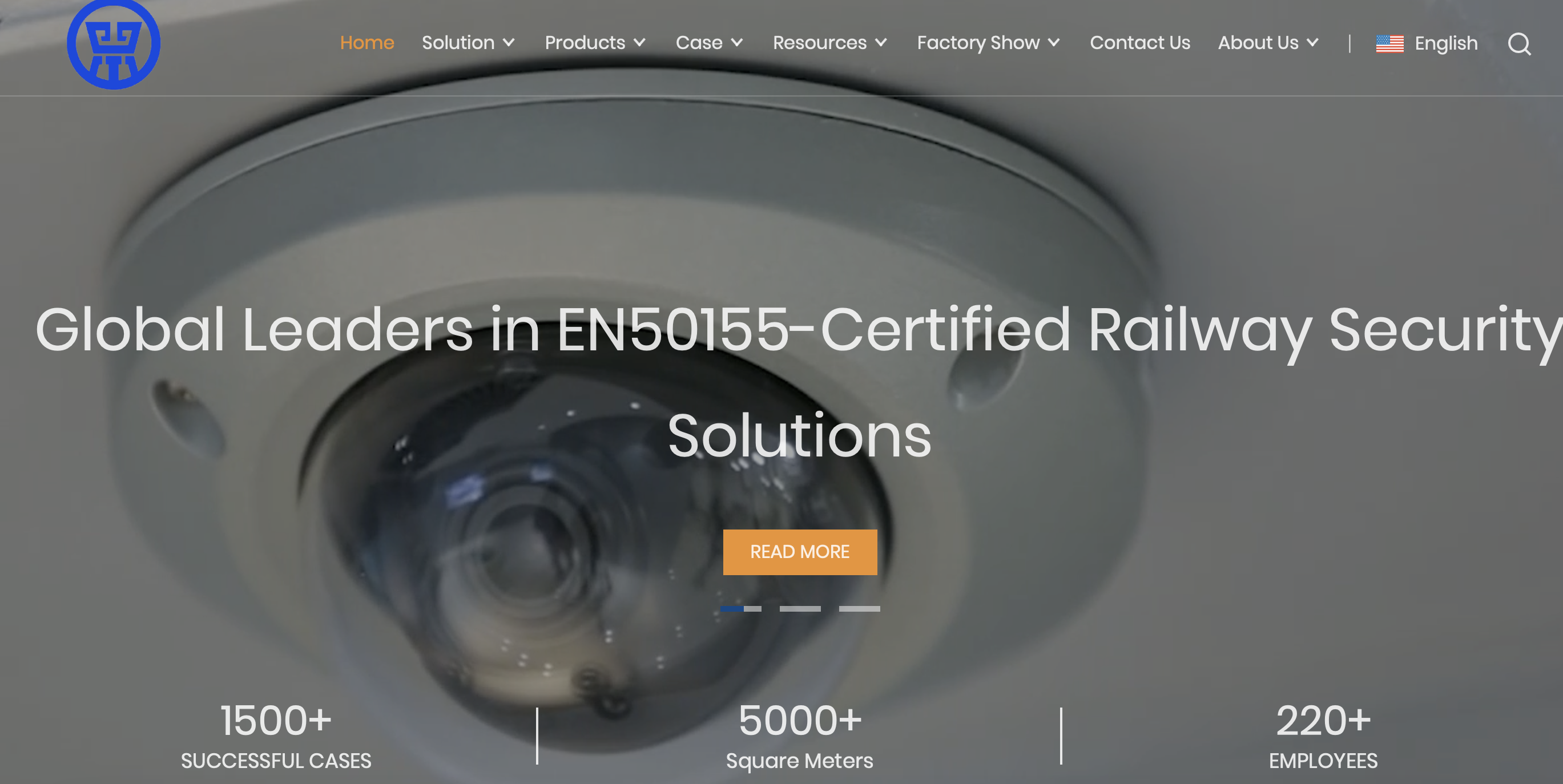

As a core supplier to the vast China Railway ecosystem, Shandong Tienuo is arguably the volume leader in onboard monitoring. Their systems are battle-tested on the world’s largest high-speed rail network, giving them an unparalleled dataset for training their AI fault detection algorithms.

• Company: Shandong Tienuo Intelligent Co., Ltd.

• Headquarters: Jinan, Shandong, China

• Founding Date: Est. 2004 (Predecessor founded, approx. 20+ years experience)

Technical Architecture Deep Dive

Shandong Tienuo’s solution is a "6C" compliant Onboard System, meaning the surveillance architecture travels with the train.

• Edge AI Inference: Unlike older CCTV systems that simply record, Tienuo’s architecture utilizes high-performance industrial NVRs (often based on HiSilicon or similar localized chips) to perform real-time edge computing.

• High-Speed Imaging: To handle speeds of 350 km/h, their cameras utilize advanced electronic shutters and backlight compensation algorithms to eliminate motion blur and handle the extreme lighting contrast between dark tunnels and bright daylight.

• Smart Detection: The system automatically identifies spark events (arcing), pantograph posture tilting, and foreign object intrusion, tagging these events in the video stream for immediate transmission to the depot via 5G/4G.

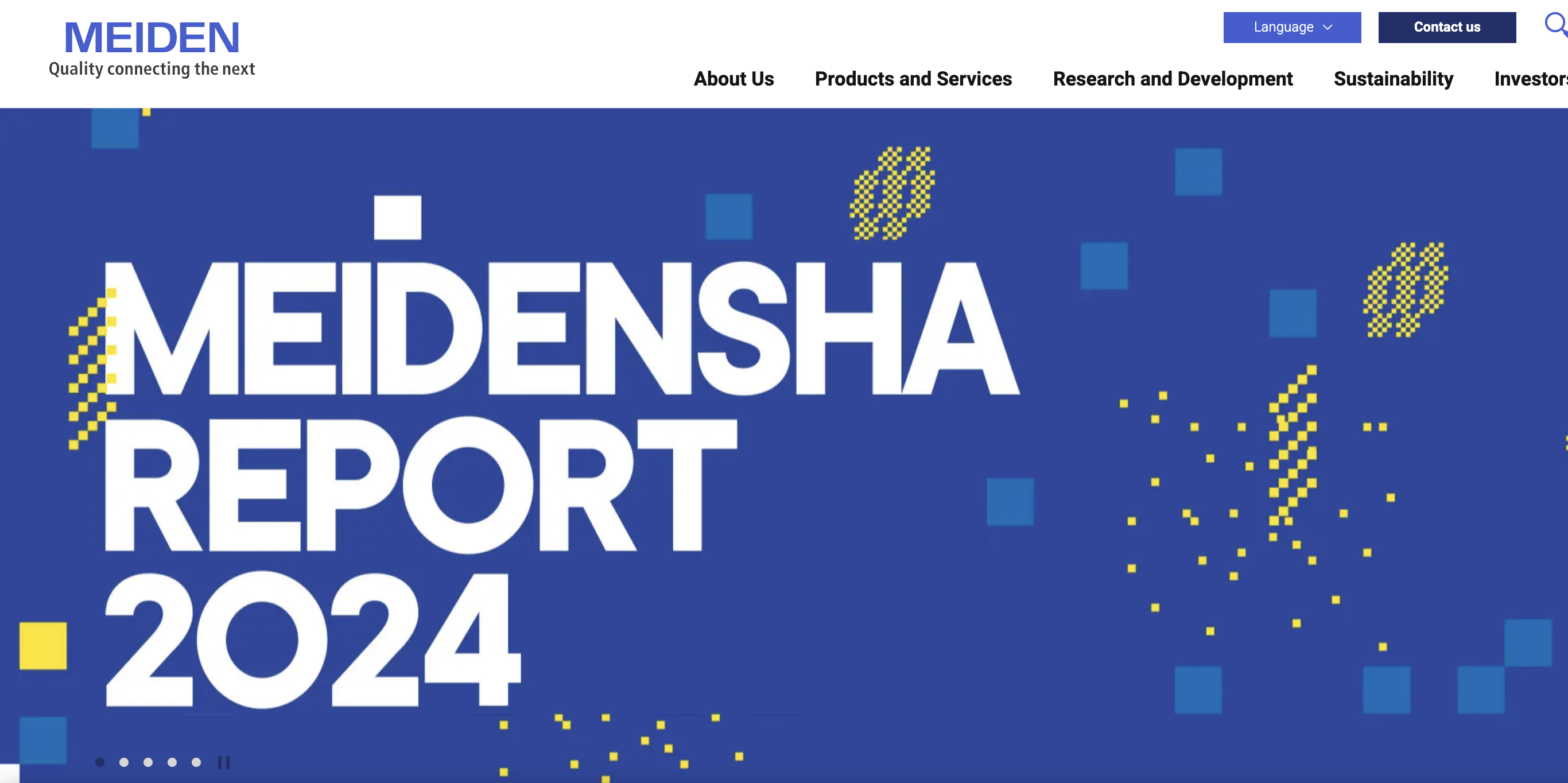

2. MEIDENSHA CORPORATION (Japan)

The Standard-Bearer of Precision Optics

Meidensha is a legend in electrical infrastructure. While they are famous for their "Catenary Eye" inspection cars, their Pantograph Monitoring Systems utilize the same heritage of extreme optical precision to serve the Japanese and Southeast Asian markets.

• Company: Meidensha Corporation

• Headquarters: Tokyo, Japan

• Founding Date: 1897

Technical Architecture Deep Dive

Meidensha’s approach prioritizes Measurement Accuracy over simple surveillance.

• Sensor-Triggered Capture: Their wayside system uses sensors on overhead structures to detect an approaching train. It triggers a "One-shot" high-resolution capture exactly when the pantograph passes the focal point.

• Algorithm Logic: The image processing software analyzes the thickness of the contact strip to within ±0.1mm accuracy. It also checks for the "Pull-off" value (deviation) to ensure the pantograph is centrally aligned.

• Connectivity: Designed for the fragmented networks of Tokyo and ASEAN metros, the system instantly transmits lightweight image data to maintenance hubs via LTE/WiMAX, allowing for a centralized dashboard of fleet health without heavy video bandwidth requirements.

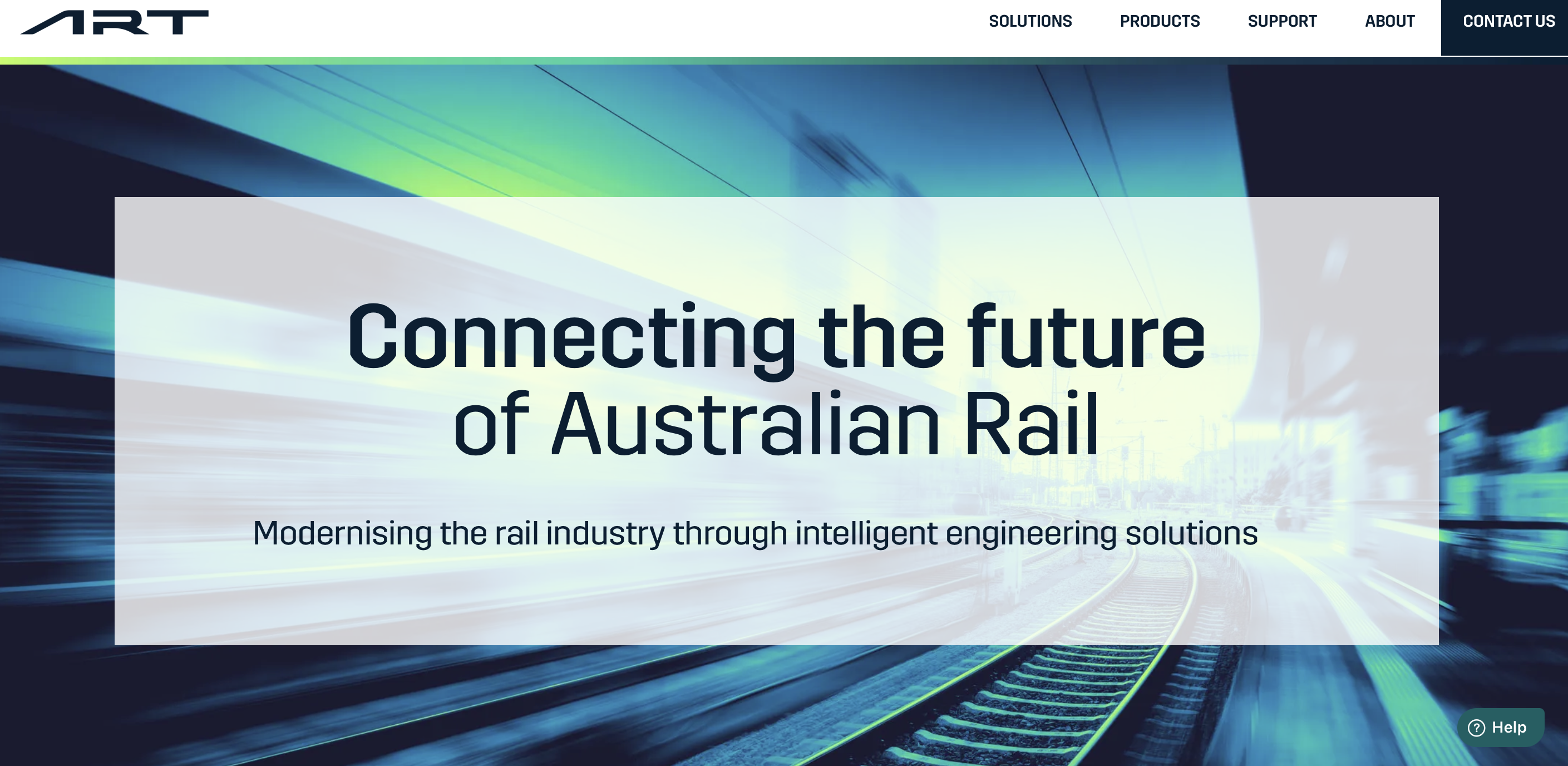

3. Australian Rail Technology (ART)

The Integrator for Harsh Environments

Australian Rail Technology (ART) is the dominant force in the Oceania region. Rather than a pure manufacturer, they are a sophisticated System Integrator. They have successfully adapted European technology (specifically the Danish PantoInspect system) to survive the brutal heat and conditions of the Australian heavy-haul and commuter networks.

• Company: Australian Rail Technology (ART)

• Headquarters: Sydney (Asquith), NSW, Australia

• Founding Date: 2006 (With infrastructure heritage spanning 40+ years)

Technical Architecture Deep Dive

ART’s solution is a fusion of Stereo Vision and Laser Triangulation.

• 3D Point Cloud: By projecting laser lines onto the passing pantograph, the system builds a 3D model of the carbon strip in real-time. This allows it to detect volume loss, not just surface cracks.

• Collision Detection Layer: ART adds a unique layer of physical protection—a Pantograph Collision Detection System (PCDS). This utilizes accelerometers and impact sensors on the overhead wiring structure to detect physical blows from a damaged pantograph, triggering emergency stop signals to prevent a dewirement.

• Automated Alarming: The system integrates directly with the rail operator's asset management server (e.g., Sydney Trains), sending "Stop/Go" alerts within seconds of a train passing the scanner.

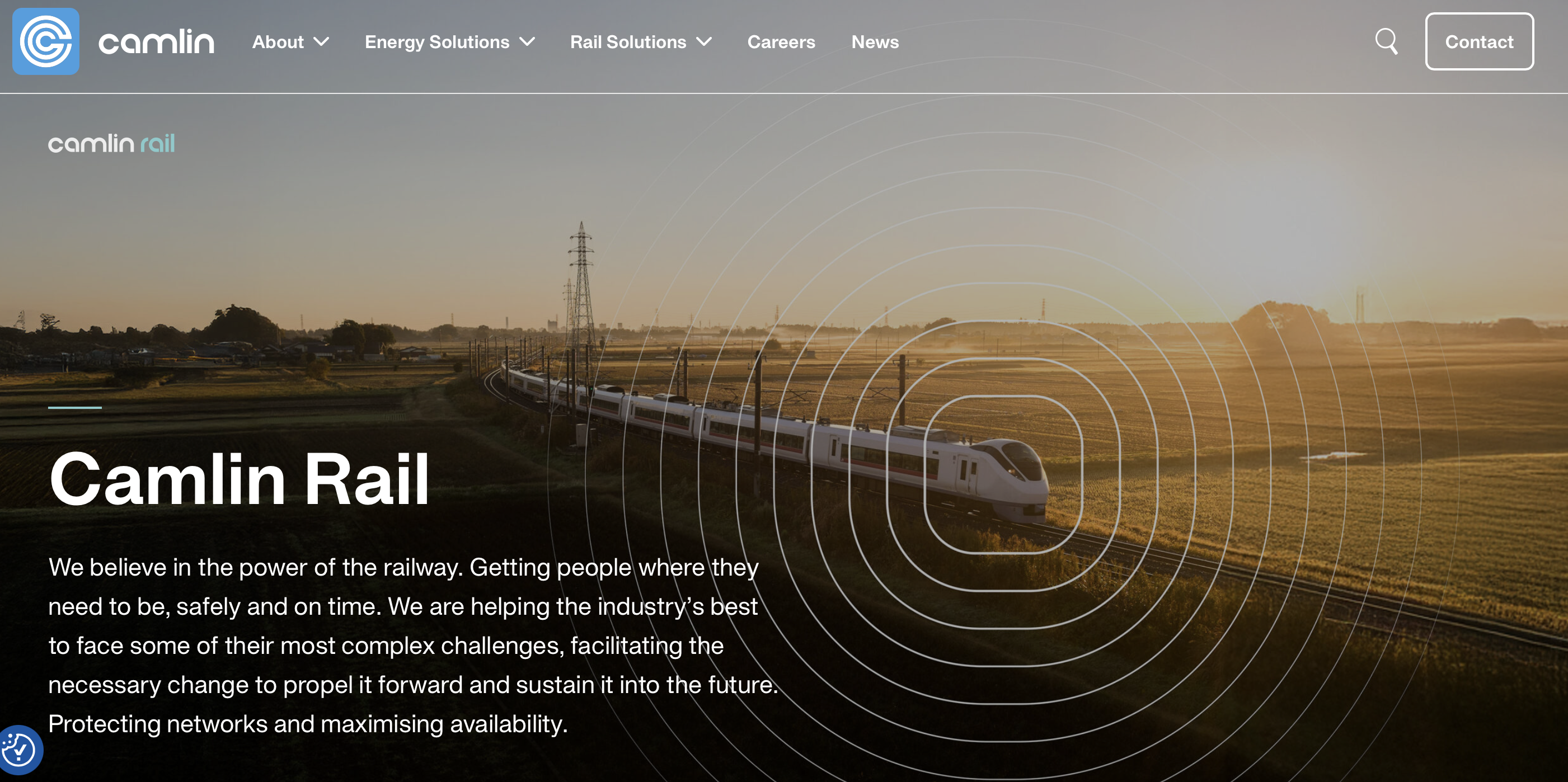

4. Camlin Rail (UK / Global)

The Stereoscopic Visionary

Although headquartered in the UK, Camlin Rail is a top-tier player in Asia, notably securing prestigious contracts with MTR Hong Kong. Their "PanVue" system is widely regarded as one of the most advanced fully automated machine vision solutions available.

• Company: Camlin Group

• Headquarters: Lisburn, UK (Regional Hub: Hong Kong)

• Founding Date: 2008 (Group established)

Technical Architecture Deep Dive

Camlin’s PanVue distinguishes itself by relying on Stereoscopic Camera Arrays rather than lasers.

• True 3D Reconstruction: Using dual cameras to mimic human binocular vision, PanVue creates a dense 3D map of the pantograph head. This allows it to see "horns" and structural deformations that single-plane lasers might miss.

• In-Service Operation: The system is designed for high-frequency, high-speed lines (up to 300+ km/h). It processes images locally at the trackside and only sends metadata and defect snapshots to the cloud.

• Ecosystem Integration: PanVue is part of the "TrainVue" suite. In advanced deployments (like in Hong Kong), it can be paired with "RoofVue" to scan the entire roof of the train for loose panels or HVAC faults simultaneously.

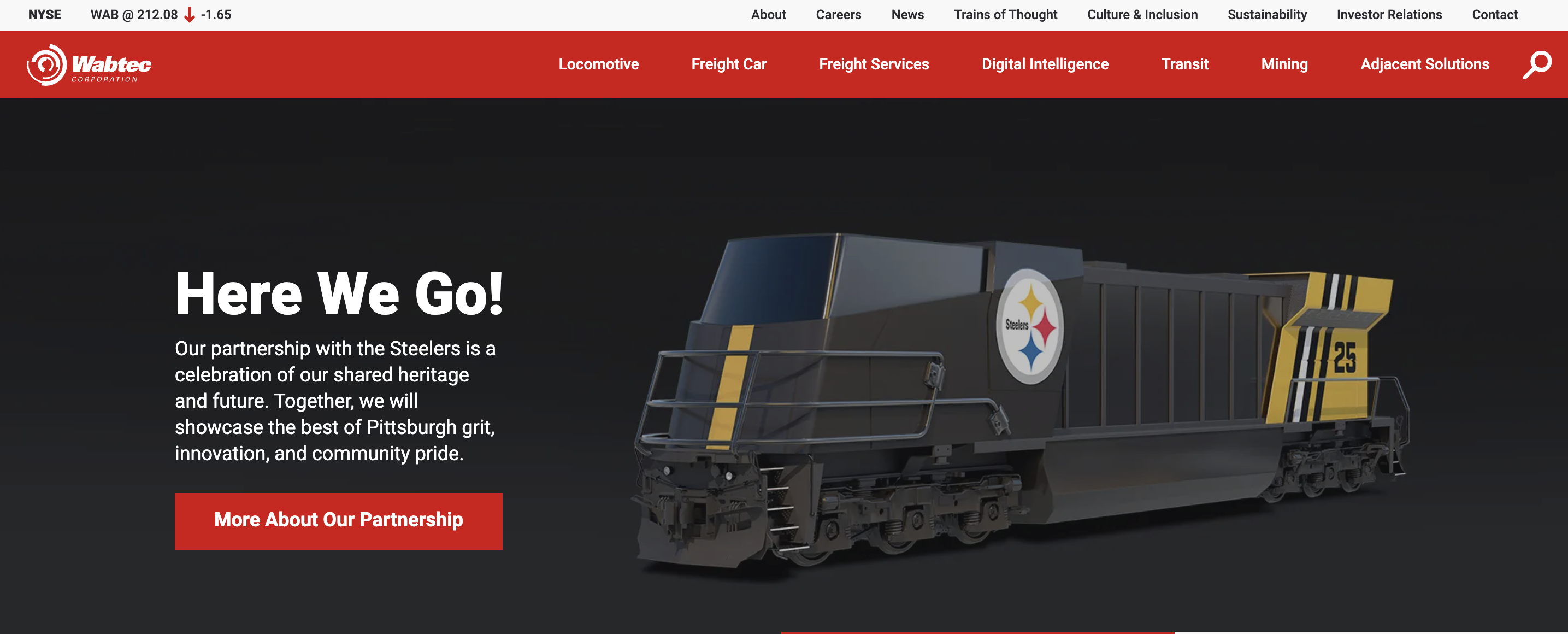

5. Wabtec Corporation (USA / India)

The "Smart" Hardware Giant

Wabtec enters this list via its massive footprint in India (following the acquisition of Faiveley Transport). Their strategy is different: instead of just watching the pantograph, they make the pantograph smart.

• Company: Wabtec Corporation

• Headquarters: Pittsburgh, USA (Major APAC manufacturing in Savli, India)

• Founding Date: 1869 (Westinghouse Air Brake Co.)

Technical Architecture Deep Dive

Wabtec’s "Smart Carbon" and "Auto Drop" technologies represent the future of Internet of Things (IoT) in rail.

• Embedded Sensing: Instead of cameras, Wabtec embeds air channels or vacuum sensors inside the carbon strip of the pantograph itself.

• Automatic Dropping Device (ADD): If the carbon strip is damaged or wears through, the air seal breaks. This pressure drop mechanically forces the pantograph to lower immediately, preventing it from snagging the overhead wire.

• Cloud Connectivity: In their latest iterations (deployed in Indian RRTS projects), this data is digitized and sent to Wabtec’s cloud APM (Asset Performance Management) platform, predicting the remaining life of the strip based on actual wear rates rather than visual estimates.

Conclusion

The Asia Pacific market for Pantograph Video Monitoring Systems is not monolithic; it is a diverse ecosystem split between onboard AI solutions (dominated by Chinese firms like Shandong Tienuo) and wayside precision measurement (led by Meidensha and Camlin).

As operators in the region—from Sydney Trains to Indian Railways—move toward Predictive Maintenance, the winning brands are those that offer more than just images. The future lies in systems that can integrate 3D data, physical impact sensing, and cloud analytics into a single "Source of Truth," allowing maintenance teams to sleep soundly knowing their network is watching over itself.
