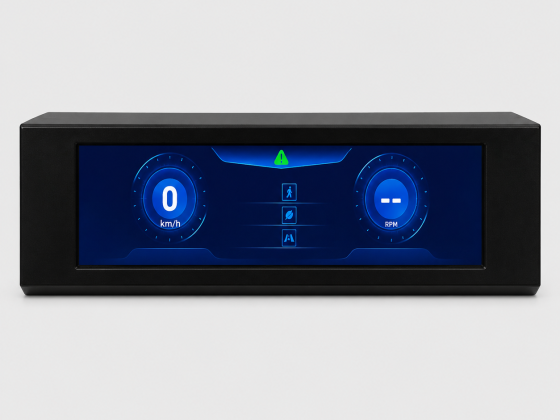

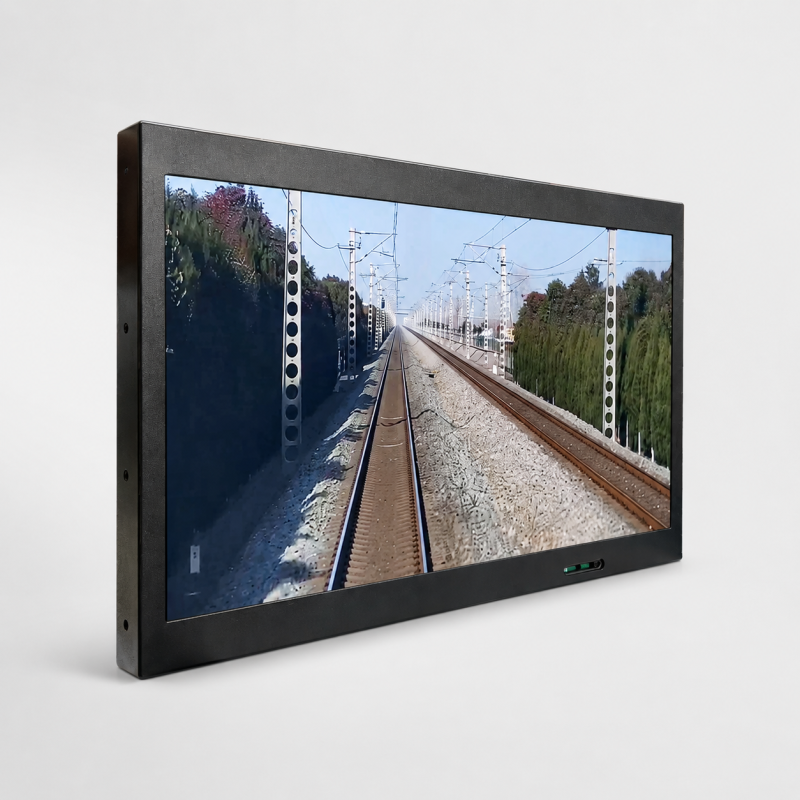

Railway Onboard Intelligent Safety Monitoring Display Terminal
Multiple Size Options
Available from 6.5 inches to 24 inches, meeting different installation requirements from compact cab monitoring to full-view video display.
High-Resolution Display
Supports 1080P to 4K resolution, providing clear video images for real-time monitoring and playback.
Multi-Screen Video Display
Supports multi-window video segmentation and HD playback, making it suitable for railway onboard video surveillance systems.
Touch Screen Operation
Supports resistive or capacitive touch screen, adapting to different working environments and operator habits.
Railway-Grade Reliability
Designed with vehicle-grade chips and a stable system architecture, supporting long service life of more than 15 years.
Rugged Industrial Protection
All-metal housing with IP63 protection, anti-vibration and anti-theft design ensures stable operation in vibration, dust and onboard environments.
- TIENUO
- CHINA
- 3-7 Days
- 30PCS/Month
- Information
Product Functions & Advantages
Real-Time Video Monitoring
Displays live video from onboard surveillance cameras, helping operators monitor cab areas, passenger compartments, equipment rooms and external railway conditions.HD Video Playback
Supports high-definition video playback for event review, fault analysis and safety inspection.Multi-Channel Video Display
Supports video segmentation on one screen, allowing operators to view multiple camera channels at the same time.Flexible Installation and Application
Screen sizes from 6.5" to 24" cover different railway scenarios, including locomotive cab display, vehicle monitoring console, equipment room monitoring and intelligent safety monitoring systems.Stable Operation Under Wide Temperature Conditions
Supports operating temperature from -25°C to +70°C, ensuring reliable performance in harsh railway environments.Wide Voltage Power Input
Supports DC 110V ±25% wide-voltage input, suitable for strong voltage fluctuation conditions in train power systems.Seamless System Integration
Provides standard interfaces and communication protocols, enabling integration with train network control systems and onboard video monitoring platforms.Long-Term Durability
Industrial-grade design, all-metal structure and vehicle-grade chips provide high stability and long service life for railway operations.
Product Technical Parameters
| Item | Specification |
|---|---|
| Product Name | Railway Onboard Intelligent Safety Monitoring Display Terminal |
| Product Type | Vehicle-grade monitoring display terminal |
| Screen Size | 6.5" to 24" optional |
| Resolution | 1080P to 4K optional |
| Display Function | Real-time video display, multi-screen video segmentation, HD playback |
| Touch Screen | Supports resistive / capacitive touch screen |
| Power Input | DC 110V ±25% |
| Operating Temperature | -25°C to +70°C |
| Protection Rating | IP63 |
| Housing Material | All-metal structure |
| Anti-Vibration Design | Supported |
| Anti-Theft Design | Supported |
| Chip Grade | Vehicle-grade chip |
| Service Life | More than 15 years |
| Interface & Protocol | Standard interfaces and communication protocols |
| System Integration | Compatible with train network control systems |
| Application Scenarios | Locomotive cab, railway onboard monitoring system, train video surveillance, intelligent safety monitoring platform |
