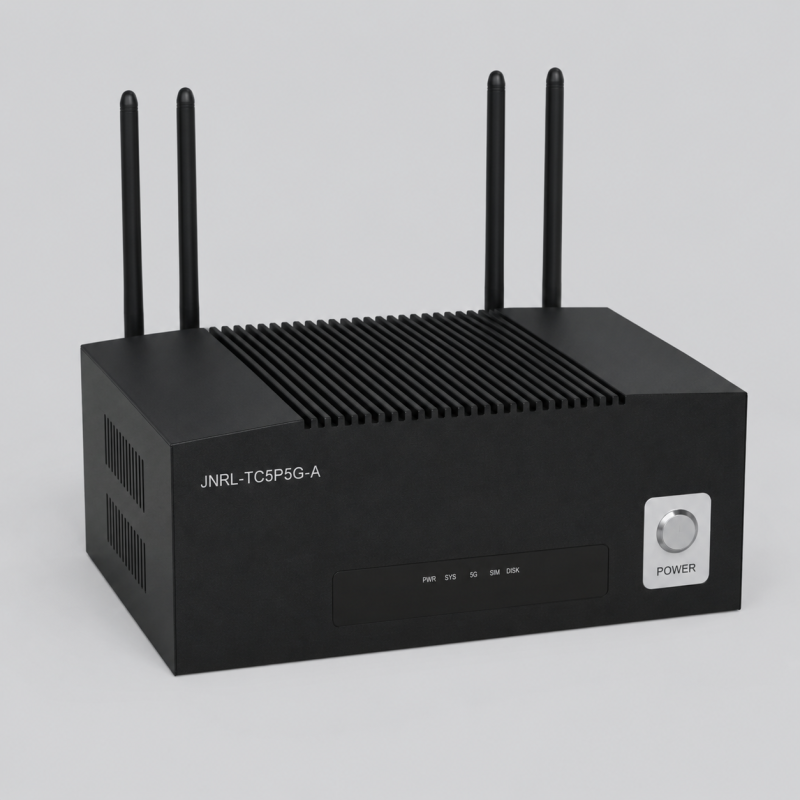

AI Edge Computing Server with 5G Connectivity, Ascend 310 AI Processor, Multi-Channel Video Analysis and H.264/H.265 Hardware Codec

Powerful AI Computing Performance
Equipped with an Ascend 310 series AI processor, supporting high-efficiency AI inference with INT4 / INT8 / FP16 / BF16 / FP32 computing formats.
Up to 20T AI Computing Power
Available with 20T computing power versions, suitable for complex multi-channel video intelligent analysis tasks.
High-Performance Video Processing
Supports up to 16-channel HD video intelligent analysis, plus multi-channel H.264/H.265 hardware decoding and encoding.
Flexible AI Algorithm Deployment
Compatible with mainstream deep learning frameworks including Caffe, TensorFlow, PyTorch, MXNet and Paddle Lite, enabling fast algorithm migration and deployment.
Integrated 5G Wireless Communication
Built-in 5G module and antenna, supports SIM card access and remote real-time video transmission.
Industrial Passive Cooling Design
Fanless passive heat dissipation design supports stable operation from -20°C to +60°C, reducing maintenance requirements and improving system reliability.

Brand: TINEUO
Product origin: CHINA
Delivery time: 3-7 Days
Supply capacity: 30PCS/MONTH

Information

Product Functions & Advantages

Real-Time AI Video Analysis
Supports intelligent analysis of up to 16 channels of HD video, suitable for human, vehicle, non-motor vehicle and object recognition.
Multi-Algorithm AI Capability
Supports video structuring, trajectory tracking, behavior analysis and target recognition, helping users quickly extract valuable information from large-scale video data.
High-Speed Video Encoding and Decoding
Supports H.264/H.265 hardware codec capability, enabling stable processing of multiple 1080P video streams with lower CPU load.
Fast Algorithm Migration
Compatible with major AI frameworks, allowing developers to quickly deploy existing models and shorten project delivery cycles.
Remote Monitoring and Wireless Transmission
Optional LTE / 5G / WiFi / Bluetooth wireless communication enables flexible deployment in mobile, onboard and remote monitoring scenarios.
Rich Industrial Interfaces
Equipped with USB 3.0, HDMI 2.0, RS-485, RS-232, Audio, SATA 3.0, CAN and customizable I/O, making it easy to connect cameras, sensors, displays, storage and control systems.
Reliable Industrial Operation
Passive cooling structure, wide temperature adaptability and solid industrial enclosure support long-term operation in demanding field environments.
Wide Application Scenarios
Suitable for railway onboard monitoring, smart parks, security surveillance, construction sites, industrial inspection, commercial complexes and edge AI analysis projects.

Product Technical Parameters

Item	Specification
Product Name	AI Edge Computing Server
Model	JNRL-TC5P5G-A
AI Processor	Ascend 310 Series AI Processor
AI Computing Power	Supports 20T versions
Supported Computing Formats	INT4 / INT8 / FP16 / BF16 / FP32
Video Intelligent Analysis	Up to 16-channel HD video intelligent analysis
Video Decoding	H.264 / H.265, 40-channel / 20-channel 1080P, 30FPS
Video Encoding	H.264 / H.265, 20-channel / 12-channel 1080P, 30FPS
AI Framework Support	Caffe / TensorFlow / PyTorch / MXNet / Paddle Lite
Algorithm Capability	Human / vehicle / non-motor vehicle / object recognition, video structuring, trajectory behavior analysis
Wireless Communication	Optional LTE / 5G / WiFi / Bluetooth
5G Function	Integrated 5G module and antenna, supports SIM card access
Operating System	Ubuntu / OpenEuler
Cooling Method	Passive cooling / fanless heat dissipation
Operating Temperature	-20°C to +60°C
Main Interfaces	USB 3.0, HDMI 2.0, RS-485, RS-232, Audio, SATA 3.0, CAN, custom I/O
Application Fields	Railway onboard AI analysis, smart park, security, construction site, commercial monitoring, industrial edge computing
