AI Edge Computing Server with 16TOPS INT8, Multi-Channel HD Video Analysis, H.264/H.265 Hardware Codec and Optional 5G/WiFi Connectivity
16TOPS AI Computing Power
Built with the BM1688 intelligent vision deep learning processor, delivering up to 16TOPS @ INT8 AI performance for edge-side video intelligence.
Multi-Channel HD Video Analysis
Supports up to 16-channel HD video intelligent analysis, suitable for real-time recognition, classification, video structuring and behavior analysis.
Powerful Hardware Video Codec
Supports H.264/H.265 hardware decoding and encoding, with maximum video resolution up to 8192 × 8192, improving video processing efficiency.
Mainstream AI Framework Compatibility
Supports fast model migration from Caffe, TensorFlow, PyTorch, MXNet and Paddle Lite, reducing AI project deployment time.
Fanless Passive Cooling Design
The fanless structure improves reliability, reduces dust accumulation and supports stable long-term operation in industrial environments.
Rich Interfaces and Flexible Wireless Expansion
Supports USB 3.0, HDMI 2.0, RS-485, RS-232, Audio, SATA 3.0, CAN and custom I/O, with optional LTE / 5G / WiFi / Bluetooth wireless functions.
- TIENUO
- CHINA
- 3-7 Days
- 30PCS/MONTH
- Information
Product Functions & Advantages
Edge AI Video Analysis
Performs real-time AI analysis at the edge, reducing dependence on cloud servers and improving response speed for security and monitoring applications.Target Recognition and Classification
Supports human, vehicle, non-motor vehicle and object recognition, helping users quickly identify key targets from video streams.Video Structuring
Converts unstructured video data into searchable structured information, improving monitoring efficiency and data value.Trajectory and Behavior Analysis
Supports trajectory tracking and behavior analysis, suitable for security surveillance, smart parks, railway monitoring and industrial safety management.High-Resolution Video Processing
With H.264/H.265 hardware codec capability, the device can process multi-channel HD video streams with lower system load and higher stability.Secure and Reliable System Design
Supports eMMC primary/backup partitions and a programmable encryption chip, improving system reliability, data security and anti-tampering capability.Industrial-Grade Stability
Wide operating temperature range from -20°C to +60°C and fanless heat dissipation make the product suitable for continuous operation in harsh field environments.Flexible Scenario Deployment
Applicable to smart parks, security surveillance, construction sites, commercial complexes, traffic monitoring, railway onboard monitoring and industrial edge computing.
Product Technical Parameters
| Item | Specification |
|---|---|
| Product Name | BM1688 AI Edge Computing Server |
| Product Type | Industrial AI edge video analysis device |
| AI Processor | BM1688 intelligent vision deep learning processor |
| AI Computing Power | 16TOPS @ INT8 |
| Computing Format | INT4 / INT8 / FP16 / BF16 / FP32 |
| Video Intelligent Analysis | Supports up to 16-channel HD video analysis |
| Video Codec | H.264 / H.265 hardware decoding and encoding |
| Maximum Video Resolution | Up to 8192 × 8192 |
| AI Framework Support | Caffe / TensorFlow / PyTorch / MXNet / Paddle Lite |
| Algorithm Capability | Human / vehicle / non-motor vehicle / object recognition, video structuring, trajectory behavior analysis |
| Storage Reliability | eMMC primary and backup partition support |
| Security Design | Programmable encryption chip |
| Cooling Method | Fanless passive cooling |
| Operating Temperature | -20°C to +60°C |

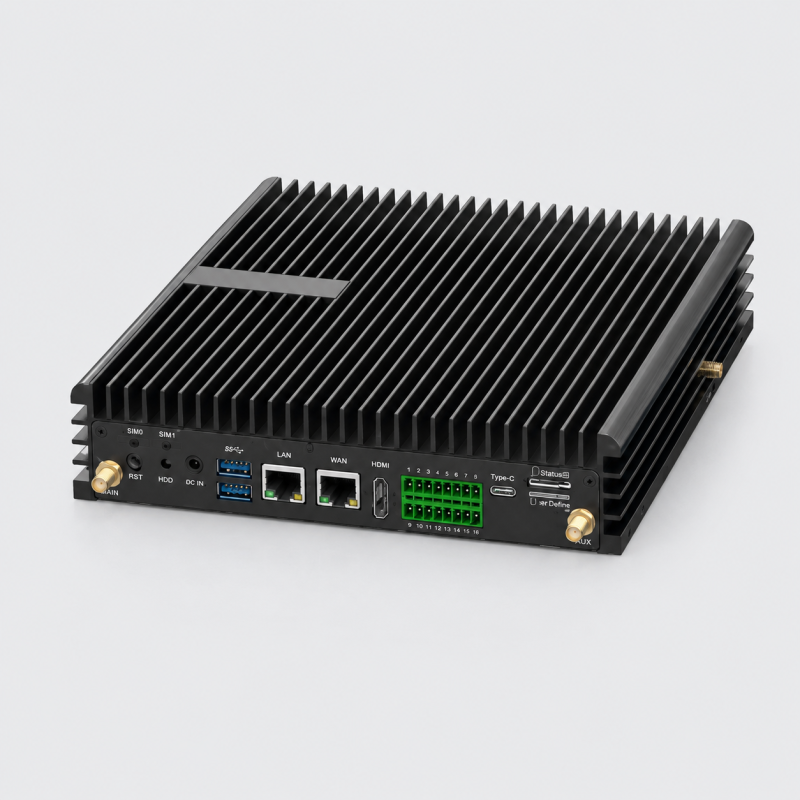

| Main Interfaces | USB 3.0, HDMI 2.0, RS-485, RS-232, Audio, SATA 3.0, CAN, custom I/O |
| Wireless Function | Optional LTE / 5G / WiFi / Bluetooth |
| Application Scenarios | Smart park, security, construction site, industrial monitoring, commercial surveillance, railway onboard AI analysis |
| Deployment Mode | Edge-side AI computing and video analysis |
